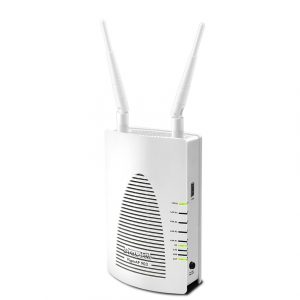

VigorAP 903

SRP:
Contact Us for Pricing
11ac MESH AP with 5-Port Switch
  • 11ac Wave 2 Concurrent Dual Band
  • Maximum Data Rate: 1.3 Gbps
  • Wall/Desk Mount
  • 5 GbE port (including 1 PoE) + 1 USB Port
  • Plug-n-Play Meshing
  • Airtime Fairness
  • Band Steering
  • AP-Assisted Roaming
  • Built-in RADIUS server for 802.1x authentication
  • Compliant with Central AP Management of Vigor Router and VigorACS
Category:

Description

Max. Data Rate
  • 867 Mbps (5GHz)
  • 400 Mbps (2.4GHz)
WI-FI Standard
  • 802.11ac wave 2 (5GHz)
  • 802.11n (2.4GHz)
Radio
  • 2×2 MU-MIMO with 2 spatial streams
Capacity
  • Up to 128 connective clients (64 Per Radio)

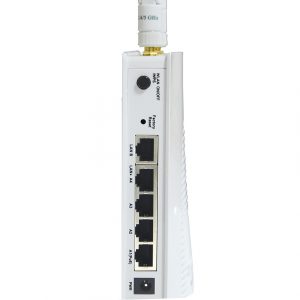

Interface
  • 5x Gigabit Ethernet Port
  • 1x USB 2.0
Antenna
  • Type: 2x Dual-Band SMA Detachable
  • Gain: 4 dBi (5GHz), 2 dBi (2.4GHz)
Mounting
  • Wall / Desktop
Environment
  • Indoor
Power
  • Power Method: DC, 802.3at PoE
  • Max. Power Consumption: 18 watts
Physical
  • Dimension: 168mm x 108mm x 45mm
  • Weight: 360g
  • Operating Temperature: 0 to 45°C
  • Storage Temperature: -25 to 70°C
  • Operating Humidity: 10 to 90% non-condensing
  • Certificate: CENCC
